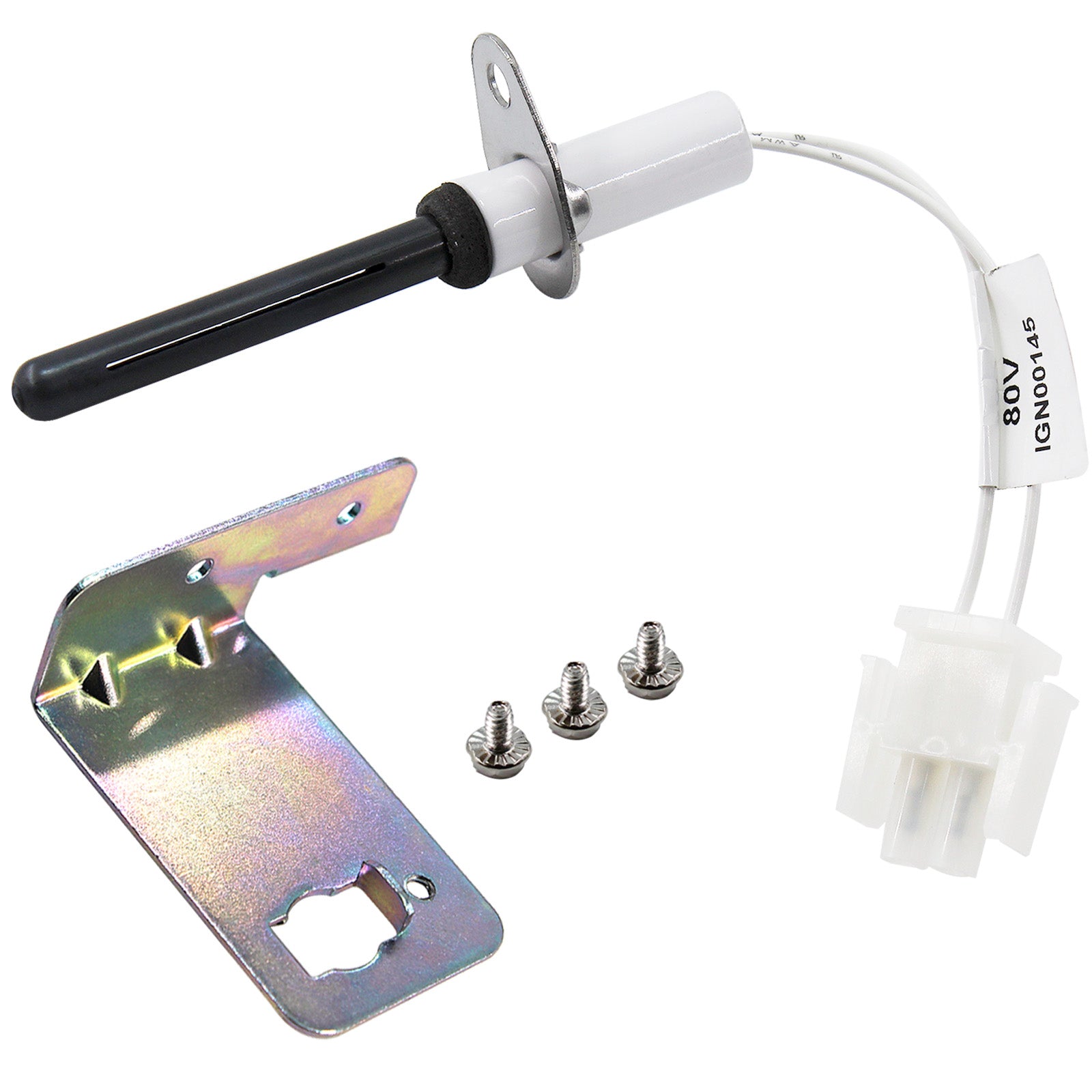

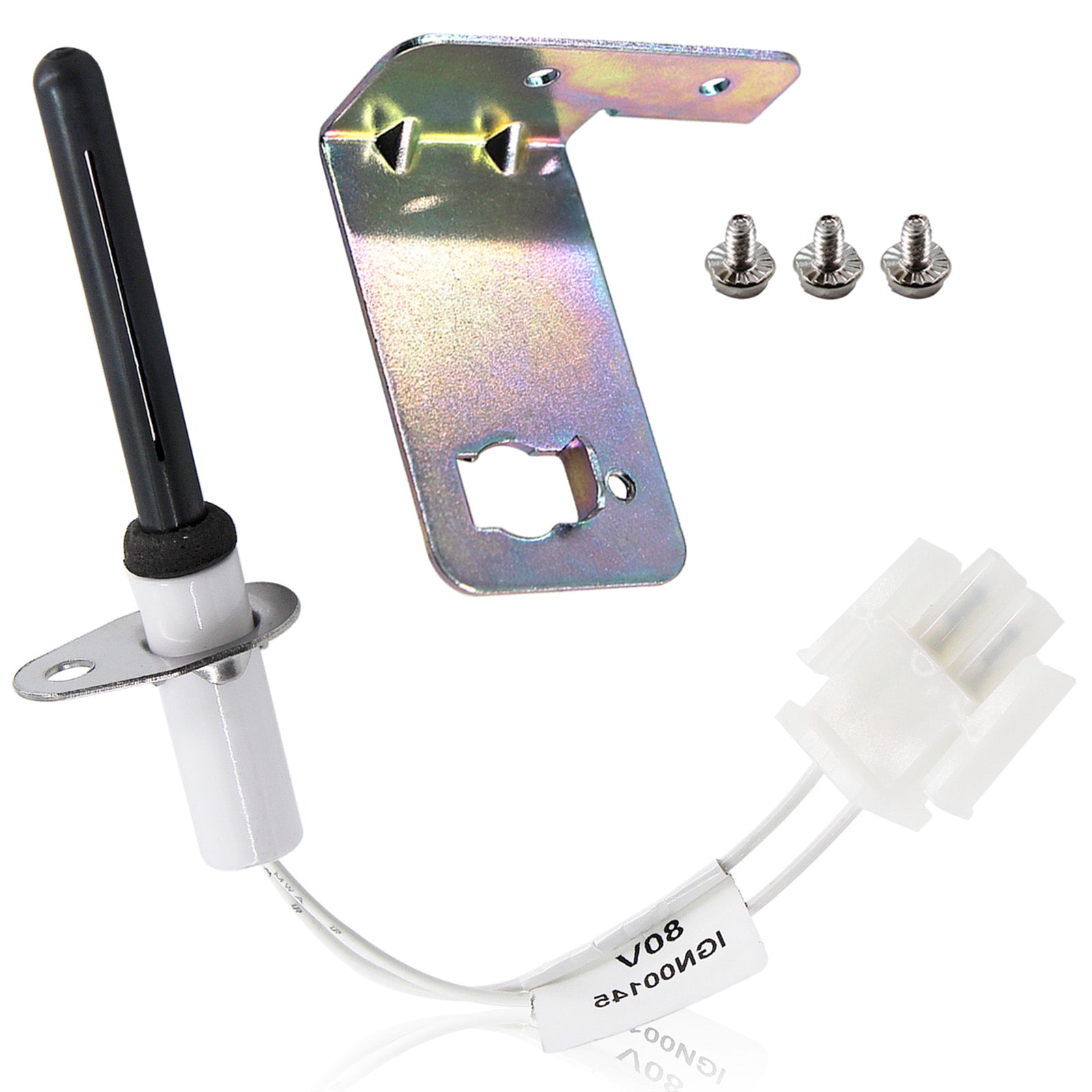

MENSI 80Volt Hot Surface Rod Ignitor with Installation Bracket and Screws Replacement of 768A 815 80V, Silicon Nitride
MENSI 80Volt Hot Surface Rod Ignitor with Installation Bracket and Screws Replacement of 768A 815 80V, Silicon Nitride
Regular price
$39.99 USD
Regular price
$69.99 USD
Sale price
$39.99 USD
Unit price
per
- -- Applications: 80V Nitride Furnace Igniter for American Standard Trane, IGN00145, SSN0145, D343692 1032 Replacement of Emerson 768A 815 Hot Surface Ignitor, Replacement of White-Rodgers 768A-84, SSN0145 And Other Similar Models Used with hot Surface Ignition for Residential Furnaces

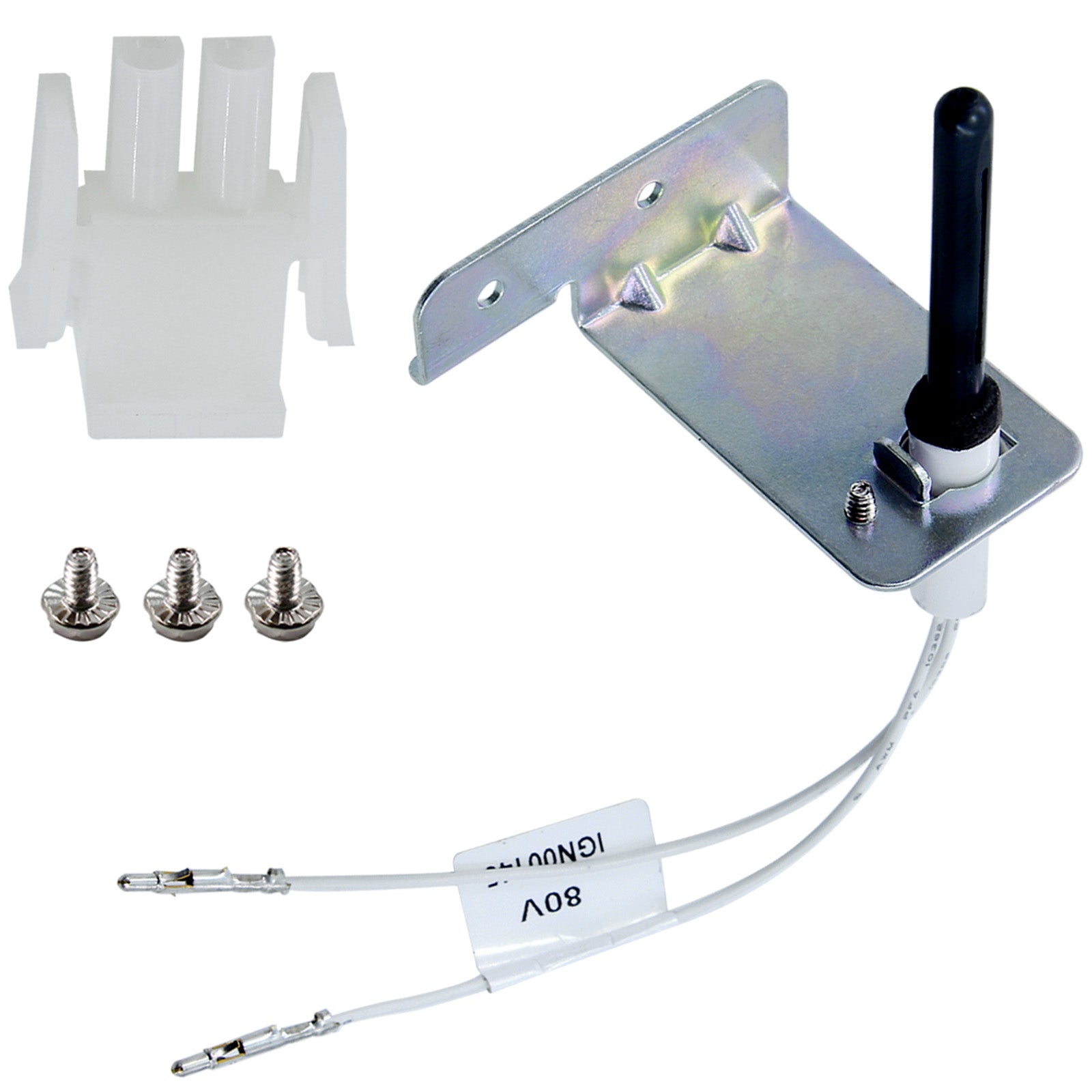

- -- 2 Terminal amp receptacle with 083-inch female sockets with Fixing Bracket and 3 Screws in the Package.
- -- Compatible with Hot Surface Furnace with Rated voltage+10%-15%, 80V +10% -15%, 50/60HZ; Cold resistance :3--9Ω; Power rating:150Watts
- -- Parameters: Temperature at 68V±0.5V 60HZ at 17Sec/68V±0.5V 60HZ 17seconds >=1080°C; Temperature at 80V±0.5V 60HZ at 17Sec/ 80V±0.5V 60HZ 17seconds at 80V: >=1180°C
- -- Capacity to resist over-voltage: Igniter is electrified for 1 minute @88V. Current of ianiter is not allowed to increase from 30 Seconds to 60 Seconds
- -- Easy Installation: The Hot Surface Ignitors with Mounting screws kit as a Assist part is easy for installation, Fits perfectly, No Special adjustments. Please be sure that it is recommended to use saftey equipment and to disconnect the appliance from utilities prior to any service or repair.
