MENSI Flame Rod Sensor Igniter 24V Replacements For Honeywell Model Q3400A1024/U Q3450, Q3620, Q3480, R42640-001 Used For SV9500M Valve
MENSI Flame Rod Sensor Igniter 24V Replacements For Honeywell Model Q3400A1024/U Q3450, Q3620, Q3480, R42640-001 Used For SV9500M Valve
Regular price
$29.99 USD
Regular price
$46.59 USD
Sale price
$29.99 USD
Unit price
per
Couldn't load pickup availability
- Replaces Of Honeywell model Number 1009524, 1149856, 42640001, Q3400A, Q3400A1016, Q3400A1040, Q3450, Q3480, Q3620, SV9401, SV9402, SV9403, SV9500, SV9500M2603, SV9500M2674, SV9500M2682, SV9501, SV9501M2528, SV9502, SV9503, SV9600, SV9600H, SV9601, SV9602, AFN643, L43-724, 68012, IG9500, Q3400A1032 and MM643KX.
- Time to temperature (1800°F): 2.5 - 3 seconds @ 24 VAC. Voltage: 24 VAC. Amperage: 0.98 - 1.4 amps @ 24 VAC. Cold resistance: 4-6 Ohms @ 75°F +/- 10°F. 18 gauge copper high-temperature fiberglass insulated lead wires.
- Fits Armstrong furnace models beginning with: UJ, GUK, GCK, GCJ, GHJ, GU93, GH90, 39708, 39800, 40019, 40020, 40414, 42213, 43235

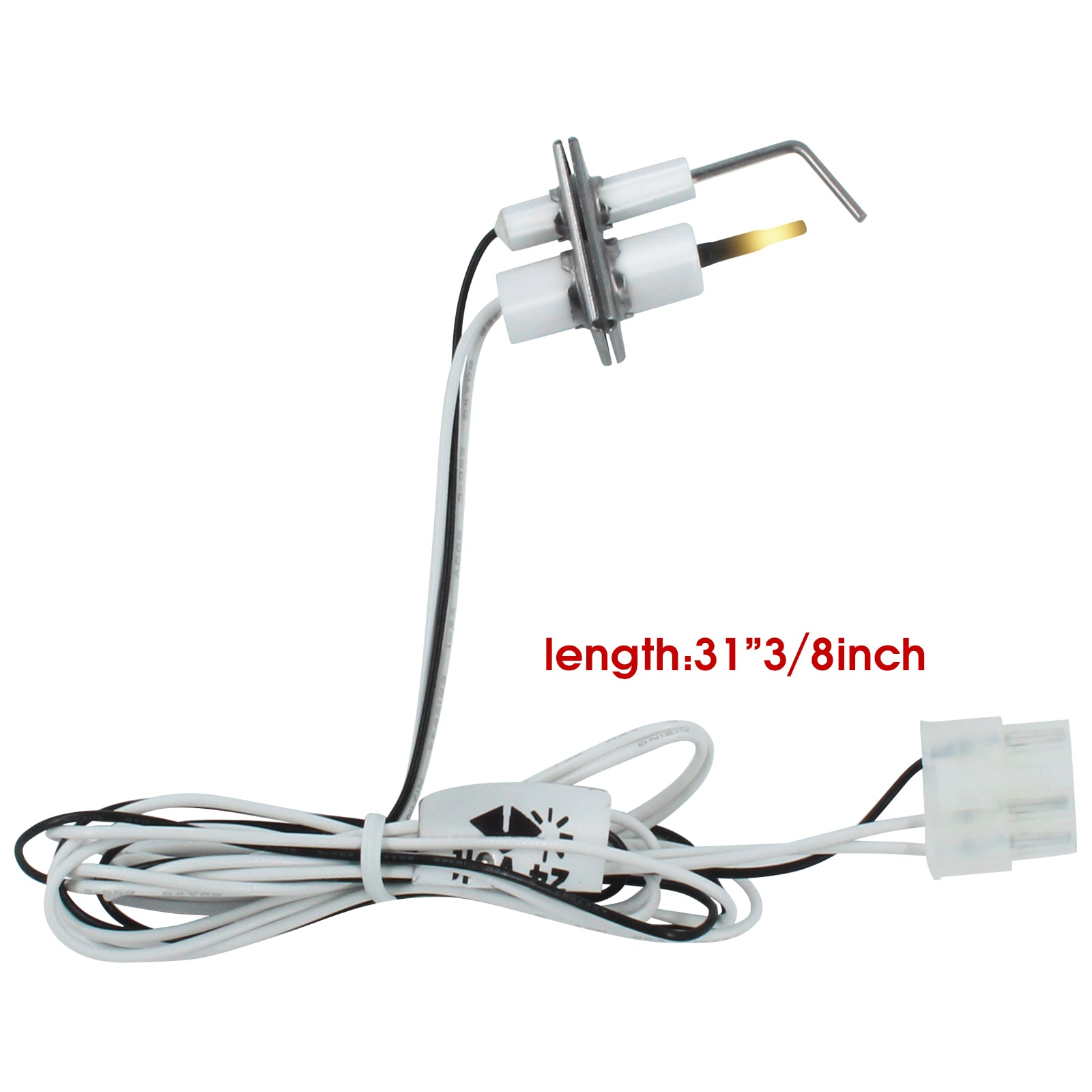

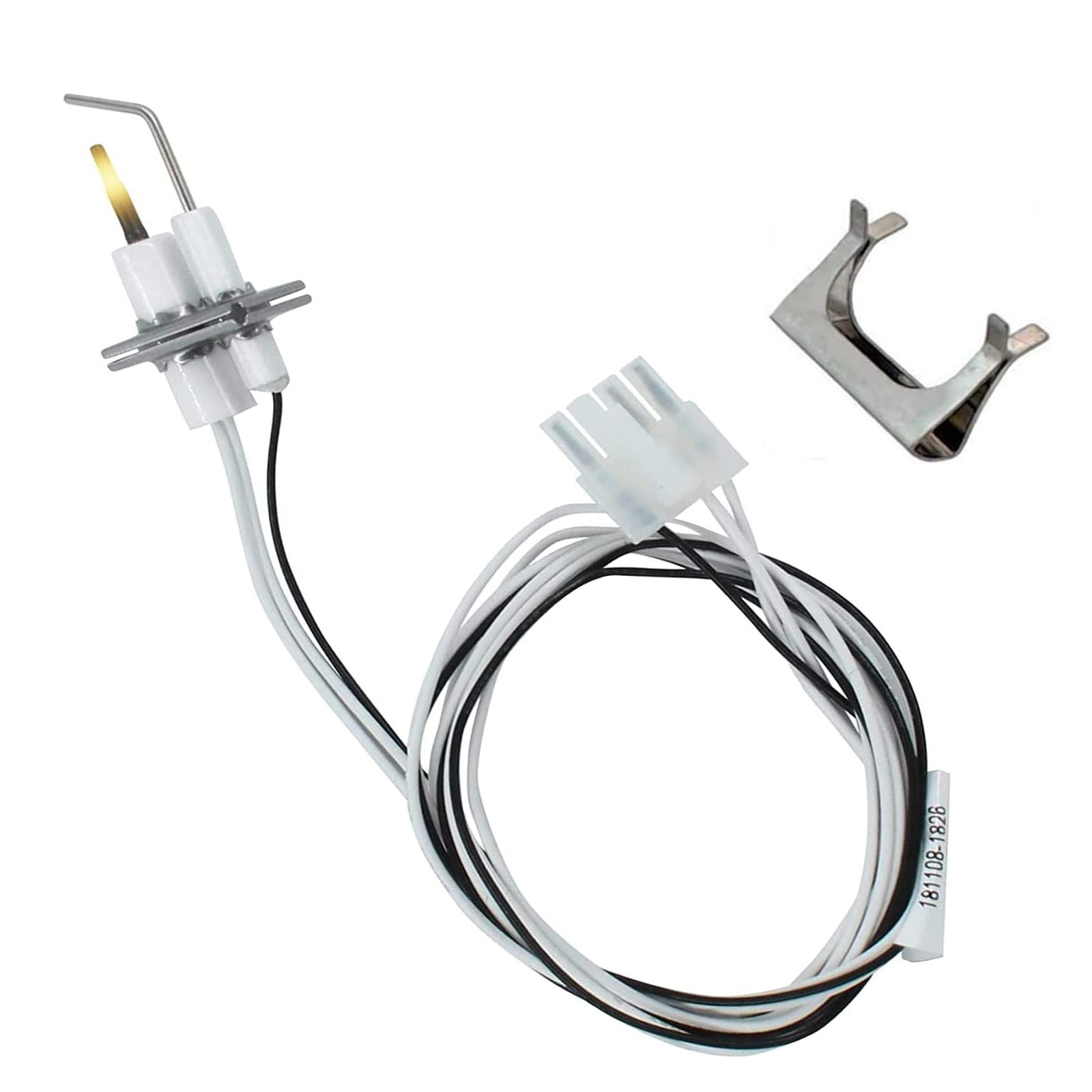

- Length 30" . Voltage 24, Gas Type NG/LP, Includes Flame Rod, Mounting Clip and Hardware '
- Applications: furnaces, boilers, water heaters, unit heaters, and pool heaters. It is important to disconnect your appliance from the power supply before servicing.
