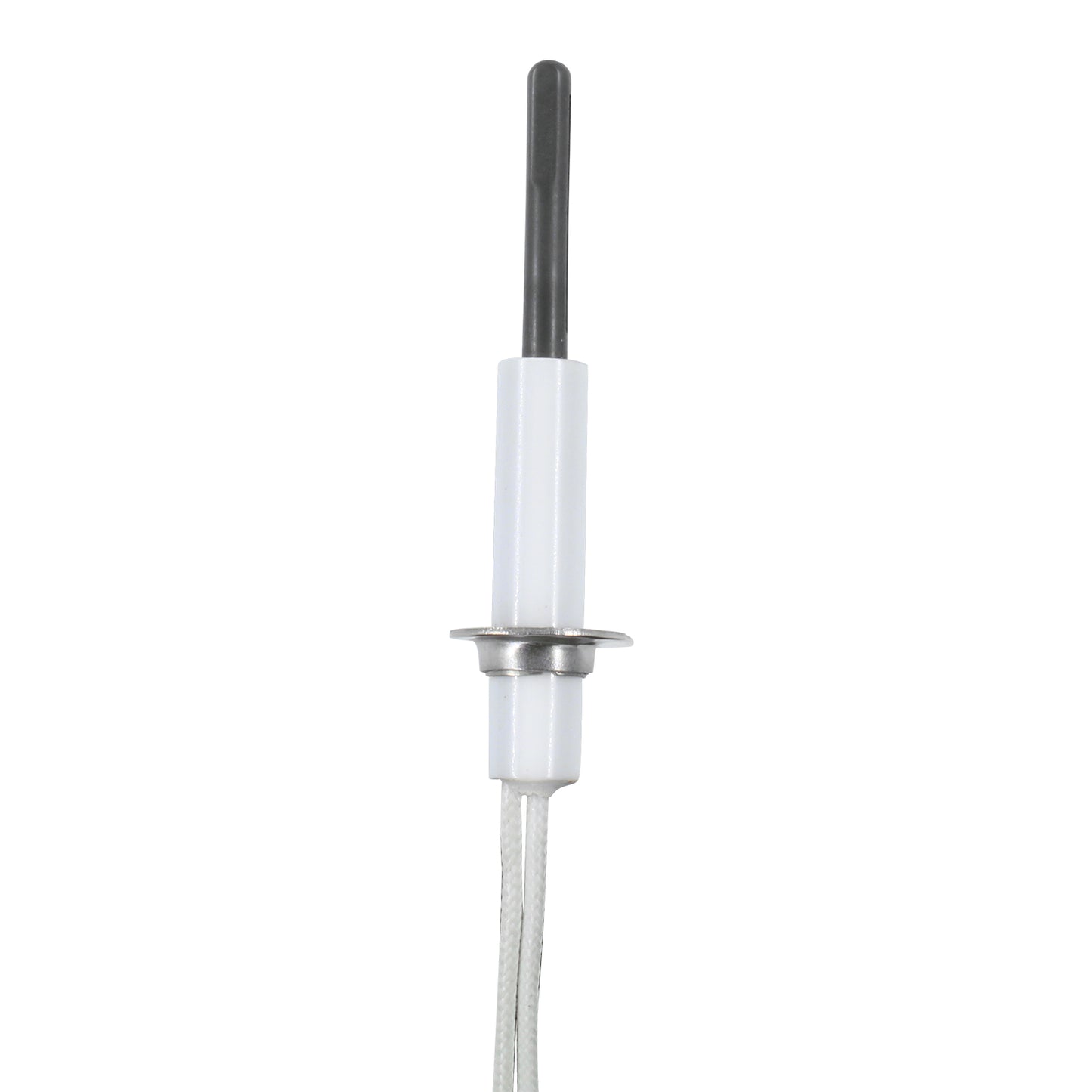

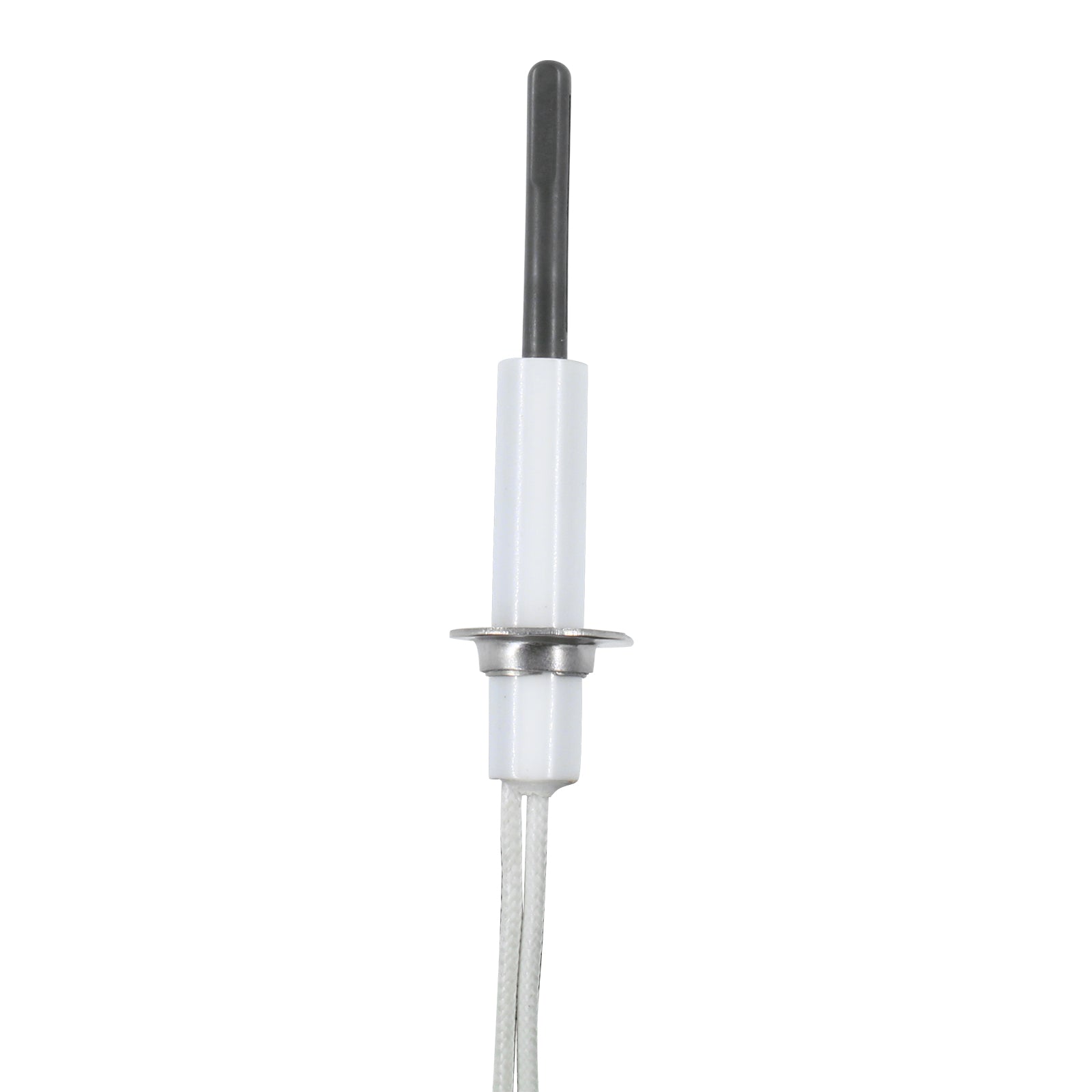

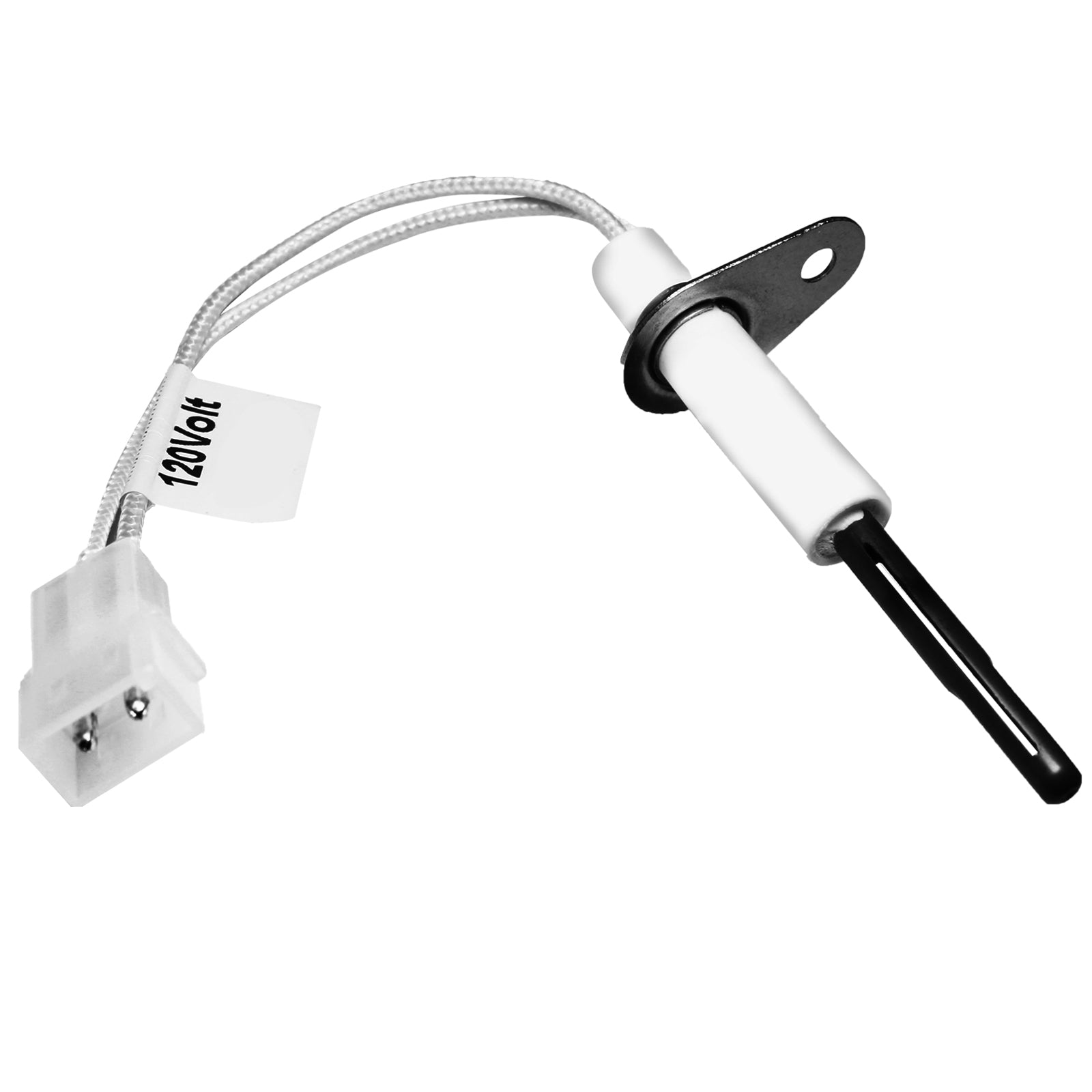

MENSI Silicon Nitride Hot Surface Heating Ignitor Replacement Spare Parts For Forced Air Gas Furnace 120V Igniter with Cable Socket

MENSI Silicon Nitride Hot Surface Heating Ignitor Replacement Spare Parts For Forced Air Gas Furnace 120V Igniter with Cable Socket

$29.98 USD
$49.56 USD $29.98 USD
Sale Sold out
  • The Ignitor Working Voltage at below 132V and Compatible Gas Furnace models: DMS90453BXA, P1256701F , P1256707F , DMS90703BXA, P1256702F , P1256708F , DMS90704CXA, P1256703F , P1256709F , DMS90904CXA, P1256704F , P1256710F , DMS90905DXA, P1256705F , DMS91155DXA, P1256706F , GCS90453BXA, P1257201F , P1257207F , GCS90703BXA, P1257202F , P1257208F , GCS90904CXA, P1257204F , P1257209F , GCS91155DXA, P1257206F , GCV90704CXA, P1257803F , GCV90905DXA, P1257805F , GDS80453AN, GDS80453ANAA , GDS80453AX, etc
  • Rated voltage: AC 120V +/- 10%-15%.50/60HZ; Coldresistance:18-40 ohm (Ω)； Rated current at 17 sec: 1.1-1.2 amps, voltage:l120v-132v. You can measure whether the Hot Surface Ignitor is working properly with a multimeter.

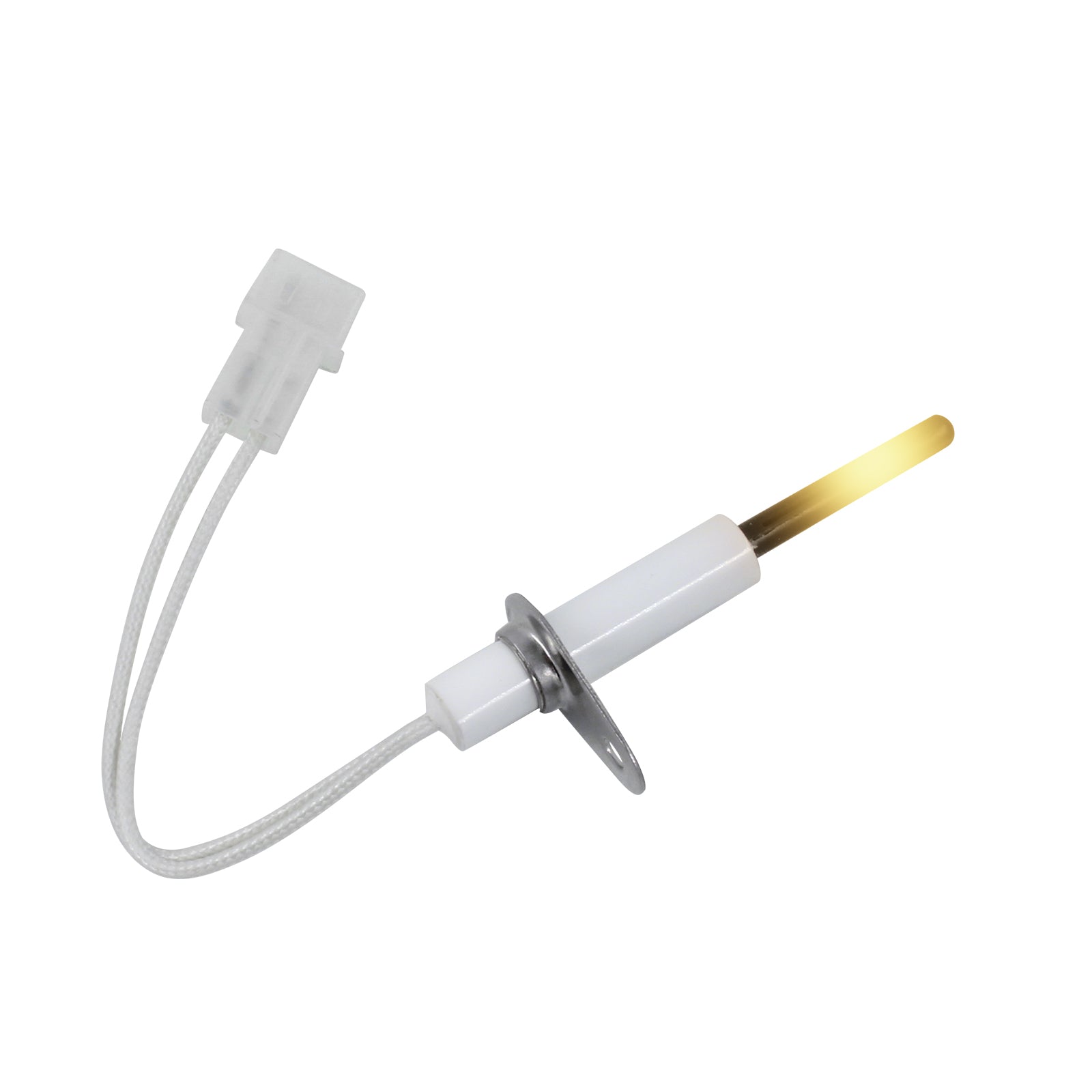

  • The Hot side igniter/igniter temperature: >= 1100°C at 102V/ 17 seconds . >= 1180°C at 120 V/ 17 seconds ,>= 1400°C at 132 V/ 17 seconds .Common repair replacement with HVAC CONTROLS, Janitrol, Furnace, Janitrol Furnace, Amana Goodman etc Furnace Hot Surface Ignitor/Igniter
  • Lift time of the Silicone Hot Rod Igniter: Treat 5S to Open, and Ignite for 15 Seconds as a cycle, Then can Ignite At least 5000 times (Around 20 years).
  • Replacement of Goodman Model 20165703S Ignitor - 594468, Replace of Heating gms80904bnbc , gms80453ana
